SUDLEDTW-PE V.2.0!

powerpopguy · **Posted:** Sat May 05, 2012 12:15 pm

That's right.. after countless hours of experimentation and just as many sleepless nights, I'm finally ready to unleash to the world..

The Super Ultimate Deluxe LED Tester Workstation (Pro-Edition) VERSION 2.0!!!

This one includes a 5K trimpot in series with a 560ohm resistor (for minimum LED protection). This allows you to dial in the exact brightness you want (a feature built into most of my production pedals).

Not only that, but there are sockets underneath the trimpot for probing with your DMM to find out exactly what resistance your favorite brightness is!

Then you can double-check that resistance value by heading over to the other side and plugging in a fixed resistor to test.

And of course if you just want to check if an LED is working or not, simply use the on-board 3V coin battery :wink:

"I thought the SUDLEDTW-PE (v.1.0) was crazy-cool, but it's really a piece of shit compared to the SUDLEDTW-PE V.2.0! It's pure unadulterated f*#king genius!" -me

phreek · **Posted:** Sat May 05, 2012 12:35 pm

Ima have to make one! Gonna have to go in a mint tin..

dcountry13 · **Posted:** Sat May 05, 2012 1:18 pm

Version 1.0 left so many questions answered. So many features hidden. Version 2.0 is ripe with answers and innovation. I am not even sure if I can handle Version 3.0 any time soon.

culturejam · **Joined:** Sun Jul 29, 2007 11:48 am **Posts:** 10332

That is cool as hell.

TNblueshawk · **Posted:** Sat May 05, 2012 6:25 pm

Man I think you are the stage where a tutorial is in order as this has surpassed my current (no pun intended) knowledge base.

CaptainPeyote · **Posted:** Sat May 05, 2012 7:15 pm

what a coincidence, 2k2 is may fave for waterclears, too! it's like we're connected...

powerpopguy · **Posted:** Sat May 05, 2012 7:26 pm

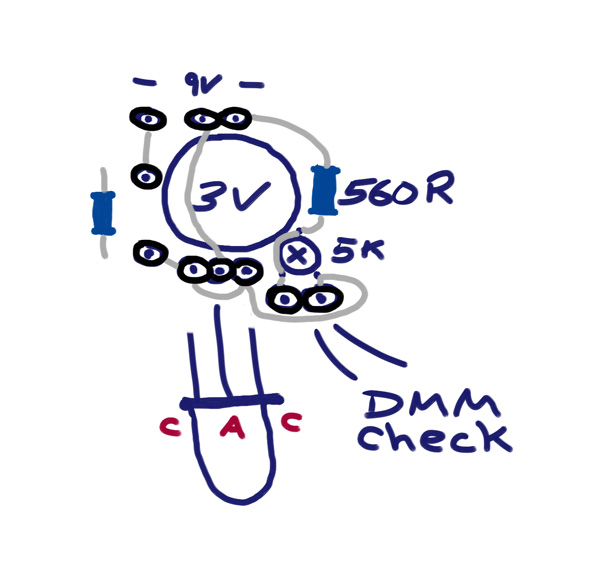

here this might help, TNB. It was a good excuse to fool around with Corel Painter and my new Wacom Bamboo Pen Tablet. :wink:

Probably could be done more elegantly, but why bother? it's just an LED tester..

TNblueshawk · **Posted:** Sun May 06, 2012 6:51 am

Broke out the computer crayons. Now I get it!

Comfort Player · **Posted:** Sun May 06, 2012 10:00 am

I'm still waiting on a kit

Guess I'll have to wait for one to show up in the Buy and Sell. :lol:

TNblueshawk wrote:

Man I think you are the stage where a tutorial is in order as this has surpassed my current (no pun intended) knowledge base.

Nice work PPG !!

crbmoa · **Posted:** Sun May 06, 2012 10:19 am

I was about to take the plunge, but just like phones and computers, I am afraid as soon as I buy or build the current version, OTR Effects is just going to release a 3.0 in a month and I will feel like a fool.

I will try and save some money and find a decent used v1 or v2 on evilbay.
